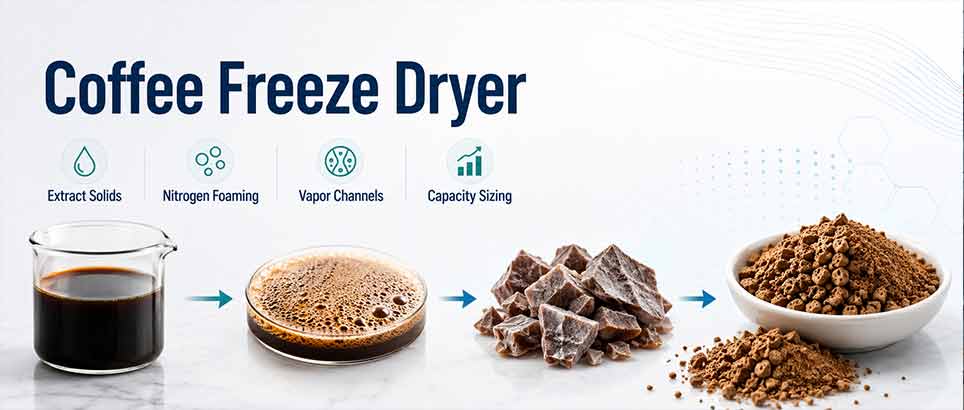

Coffee Freeze Dryer for Commercial Instant Coffee Production
A coffee freeze dryer should be selected by extract solids, prepared feed form, water load, condenser capture rate and full cycle time—not by tray quantity alone. This guide compares direct freezing for low-solids extract with a manufacturer-validated nitrogen-foaming route for concentrated coffee intended as porous granules.
Quick Answer: What Does a Coffee Freeze Dryer Process?
A commercial freeze dryer for coffee processes coffee extract rather than roasted coffee beans. The material entering the chamber may be directly frozen liquid, a frozen slab or prepared granules. Therefore, extract solids and the required finished-product form must be defined before equipment selection.
In the manufacturer’s engineering practice, coffee extract below 18% solids can be loaded into trays, frozen and dried without foaming or granulation. For concentrated coffee intended as porous instant-coffee granules, a validated nitrogen-foaming step may be used before controlled freezing and low-temperature granulation.
Why Use Freeze Drying for Instant Coffee?
The freeze drying of coffee extract can support porous particles, fast dissolution and a premium product position because frozen water is removed mainly by sublimation under low pressure. Research on freeze-dried coffee powder also evaluates aroma, flavor, color and reconstitution as important product-quality indicators.[1]
However, the process requires more capital, refrigeration and time than spray drying. It is most relevant for premium instant coffee, specialty coffee ingredients, cold-brew concentrates, private-label products and formulations that need rapid reconstitution or a distinctive granule appearance.
Freeze-Dried Coffee vs Spray-Dried Coffee
These processes serve different production goals. Spray drying is efficient for large-volume instant coffee. Freeze drying is slower and usually more expensive, but it can support higher-value products when aroma, appearance and dissolution are priorities.[3][5]
| Decision Factor | Freeze-Dried Coffee | Spray-Dried Coffee |
|---|---|---|
| Typical market position | Premium instant coffee and higher-value ingredients | High-volume and cost-sensitive products |
| Feed preparation | Concentrated extract followed by controlled freezing and particle preparation | Pumpable concentrated extract atomized into hot drying gas |
| Product form | Porous granules or particles | Fine powder, sometimes followed by agglomeration |
| Quality focus | Lower-temperature drying, appearance and fast reconstitution | High throughput and lower unit cost |
| Production mode | Batch or continuous | Usually continuous |
| Capital and operating cost | Usually higher | Usually lower per kilogram at high volume |
Commercial Instant Coffee Freeze-Drying Process
A reliable coffee freeze-drying project begins before the chamber. Extract solids and the required product form determine whether the factory should use direct liquid freezing or a validated foaming route followed by freezing and granulation.
Extraction, Clarification and Solids Measurement
Roasted and ground coffee is extracted, then clarified to remove insoluble material. Before process selection, the factory should measure solids or Brix, viscosity, batch weight and the required particle form. Published instant-coffee process references commonly discuss concentrated extract near 40% solids, although the practical value depends on viscosity, pumpability and solubility.[4]
Select the Route by Solids and Product Form
In the manufacturer’s engineering practice, coffee extract below 18% solids can be loaded into trays and frozen directly. For higher-solids extract intended to become defined instant-coffee granules, the factory evaluates foaming, controlled freezing and low-temperature granulation.
Nitrogen Foaming Before Freezing
In the manufacturer’s validated route, food-grade nitrogen is dispersed into concentrated coffee liquid before freezing. The bubbles create a foamed structure, and freezing fixes that geometry inside the coffee matrix. This step creates porosity; it is not a nitrogen drying atmosphere or a packaging backfill.
Controlled Freezing and Granulation
The foamed coffee is frozen into a slab, flake or other controlled form. One process reference describes cooling the concentrate to approximately 0–3°C and forming frozen flakes around 3–4 mm.[4] The material is then granulated to the required range while it remains below its softening or melting limit.
Vacuum Drying Through the Pore Network
After loading, the chamber is evacuated and controlled shelf heat supplies sublimation energy. Gas leaves the bubble cavities during pump-down, while the frozen pore structure remains. These pores provide additional paths for water vapor and can reduce internal mass-transfer resistance. Published porous-frozen-material research reported a drying-time reduction of roughly one third under its tested conditions.[5]
Endpoint, Screening and Moisture-Proof Packaging
Confirm the endpoint by final moisture, water activity, pressure response and product quality.[8] Granulated coffee may require final screening, while directly frozen liquid may require breaking or milling after drying. Both products are hygroscopic and should move quickly into moisture-barrier packaging.
Coffee Extract Solids: The First Sizing Input
Extract weight alone does not define capacity. Solids concentration determines finished-coffee yield, condenser water load and the practical feed-preparation route.
Two Engineering Routes Based on Solids and Product Form
| Feed Condition | Process Route | Foaming and Granulation | Main Engineering Effect |
|---|---|---|---|
| Below 18% solids | Direct tray loading, freezing and freeze drying | Can be omitted in the manufacturer’s practice | Simpler line, but more water removal and lower finished output per batch |
| Higher solids with a defined granule target | Validated foaming, controlled freezing, granulation and freeze drying | Evaluated during pilot testing | Bubble-derived pores improve vapor paths; granulation controls particle size and bulk density |
| Near the route boundary | Compare both methods in pilot testing | Decide from drying time, product form and economics | Balances process complexity against condenser load and finished output |
Example: 600 kg of Coffee Extract
The following mass balance assumes a target final moisture of 2%.
| Extract Solids | Dry Solids in 600 kg | Estimated Product at 2% Moisture | Estimated Water Removed |
|---|---|---|---|
| 15% | 90 kg | 91.8 kg | 508.2 kg |
| 20% | 120 kg | 122.4 kg | 477.6 kg |
| 30% | 180 kg | 183.7 kg | 416.3 kg |
| 40% | 240 kg | 244.9 kg | 355.1 kg |
A 15% batch places about 508.2 kg of water on the drying system, while a 40% batch places about 355.1 kg. Therefore, upstream simplification must be balanced against condenser load, cycle time and finished output.
How to Calculate Coffee Freeze Dryer Capacity
A useful calculation connects mass balance, usable drying area, vapor capture and full cycle time. Tray quantity or nominal wet-load capacity alone is not enough.
1. Define the Material Entering the Dryer
Record kilograms of concentrated extract or frozen granules per batch, solids percentage, bulk density, particle size and loading depth.
2. Calculate Dry Solids and Water Removal
Use the mass-balance equations above. Then add realistic allowances for sampling, tray residue, fines, rejected particles and packaging loss.
3. Confirm Usable Shelf Area
Frozen slabs and prepared granules do not necessarily use the same loading density. Therefore, fruit, meat or cooked-rice data should not be copied directly into a coffee project.
4. Match the Condenser to the Water Load
The condenser must hold the complete ice load and capture vapor fast enough during peak sublimation. This is especially important for coffee extract below 18% solids because the direct-liquid route carries more water per kilogram of finished product. Buyers should compare total ice capacity, capture rate, temperature under load, frost distribution, vapor path and defrost time. The freeze dryer condenser guide explains these differences.
5. Calculate Real Daily Output
The full cycle includes loading, pump-down, primary drying, secondary drying, pressure release, unloading, defrosting, cleaning and preparation. Thus, drying time alone does not equal daily production time.
How Nitrogen Bubbles Create Water-Vapor Channels
A dense frozen coffee matrix gives water vapor fewer internal paths during primary drying. In the manufacturer’s process, nitrogen foaming creates bubbles before freezing. Freezing preserves the cavities, which then form a pore network after pump-down.
The porous-frozen-material principle is supported by published research, although the research method is not identical to the manufacturer’s nitrogen process.[5] The practical result depends on gas flow, bubble distribution, coffee viscosity, freezing speed, granule size and loading depth.
Variables to Control
- Nitrogen flow and injection time
- Bubble size and distribution
- Coffee viscosity and solids
- Time between foaming and freezing
- Freezing rate and final temperature
- Granule size and loading depth
Expected Process Effects
- More internal vapor channels
- Lower mass-transfer resistance
- Potentially shorter primary drying
- Lower bulk density
- Faster dissolution
- Weak granules if over-foamed
Batch vs Continuous Coffee Freeze Dryer
Pilot Batch System
Best for concentration trials, frozen-particle studies, aroma comparison, market samples and scale-up records.
Commercial Batch System
Suitable for specialty coffee, private-label production, multiple formulations or output that does not justify a dedicated continuous line.
Industrial or Continuous System
Relevant when one stable product runs at high annual volume and the factory already has extraction, concentration, freezing and packaging infrastructure.
Large suppliers publish continuous systems for high-volume instant coffee production.[6][7] A batch coffee freeze dryer is often more practical while product specifications, demand or changeover requirements are still developing.
Coffee Freeze Dryer Systems Buyers Should Compare
Validated Foaming System
For the concentrated granule route, compare the injector or mixer, gas-flow control, bubble uniformity, residence time and transfer time to the freezer.
Freezing and Granulation
The freezer must fix the pore structure before it collapses. Granulation should then produce a consistent particle range without warming or smearing the coffee.
Condenser, Vacuum and Shelf Heating
Check total ice capacity, vapor-capture rate, loaded operating pressure and product-temperature control. Low-solids liquid carries more water, while porous granules may reduce internal drying resistance.
Controls and Traceability
The system should record extract solids, foaming settings, freezing conditions, granule size, loading, product temperature, chamber pressure and condenser temperature.
Pilot Testing Before Equipment Selection
Pilot testing should create data that can transfer to a commercial coffee freeze dryer. Research on cold-brew coffee also shows why concentration, critical-temperature behavior, loading depth and final product quality must be evaluated together.[2] A visual sample or drying-time figure alone is not enough.
| Test Variable | What to Record | Why It Matters |
|---|---|---|
| Extract concentration | Solids or Brix, viscosity and batch mass | Defines product yield and water removal |
| Critical temperature behavior | Eutectic, melting or collapse observations | Sets safe product-temperature limits |
| Route selection | Direct-liquid or prepared porous-granule route | Defines auxiliary equipment and final product form |
| Foaming | Gas flow, injection time, bubble distribution and bulk density | Determines pore formation |
| Freezing and granulation | Freezing rate, final temperature, particle range and transfer time | Fixes the structure and controls particle strength |
| Loading | kg/m², depth and distribution | Connects the test with production shelf area |
| Drying curve | Product temperature, shelf temperature, pressure and condenser temperature | Supports scale-up and repeatability |
| Endpoint and quality | Moisture, water activity, density, strength, aroma and dissolution | Confirms saleable specifications |
| Yield and utilities | Finished kilograms, electricity, steam, water, nitrogen and losses | Supports cost and ROI calculations |
The manufacturer’s instant tea powder project demonstrates why liquid-extract concentration, loading, condenser capacity and final moisture must be evaluated together. Coffee has different quality targets, but the same mass-balance principle applies.
Matching the Production Target to a Coffee Freeze Dryer
The following ranges provide a starting point. Their wet-material capacities describe typical food projects, not guaranteed instant coffee output. Extract solids, frozen bulk density, loading depth and cycle time must adjust the recommendation.
| Production Stage | Model Range | Published 24-Hour Wet-Material Reference | Best Use in a Coffee Project |
|---|---|---|---|
| Laboratory and pilot | SDG60 / SDG90 | Approximately 60–80 kg / 90–120 kg | Concentration trials, frozen-particle tests, cycle development and market samples |
| Commercial batch production | SDG350 / SDG700 / SDG1100 | Approximately 340–450 kg / 680–900 kg / 1.02–1.36 t | Regular specialty-coffee and beverage-ingredient production |
| Industrial production | SDG1600 / SDG3000 / SDG6000 | Approximately 1.2–2 t / 3–4 t / 6–8 t | Factory projects with planned steam, cooling water, material handling and installation |
Coffee Freeze-Drying Cost and ROI
A useful financial model calculates cost per kilogram of saleable coffee, not electricity per batch alone. It should include extraction, concentration, freezing, drying and packaging.
Include These Costs
- Coffee beans, roasting and grinding
- Extraction, clarification and concentration
- Aroma recovery, freezing and granulation
- Electricity, steam, cooling water and nitrogen consumption
- Utility unit prices and peak-demand charges
- Labor, cleaning and maintenance
- Packaging, depreciation and rejected batches
Define the Revenue Basis
- Saleable kilograms per batch
- Wholesale price and gross margin
- Operating days and batches per year
- Yield losses and fines recovery
- Expected capacity utilization
- Premium over spray-dried alternatives
The freeze dryer electricity guide explains why installed power differs from real energy use. The freeze-drying cost guide provides a wider ownership-cost framework.
Six Common Coffee Freeze-Drying Mistakes
- Using one feed-preparation route for every formula: route selection should follow solids, viscosity and product form.
- Treating nitrogen as the chamber drying atmosphere: the validated process uses it before freezing to form pores.
- Allowing the foam to collapse: poor bubble stability or slow transfer reduces the intended porosity.
- Creating large or uneven bubbles: this can weaken granules and produce inconsistent drying.
- Under-sizing the condenser: low-solids liquid carries a high water load per kilogram of finished coffee.
- Copying a fruit or meat cycle: coffee solids, pore structure and granule size require separate testing.
Coffee Freeze-Drying Project Checklist
A supplier can estimate water removal, condenser load, cycle time and model range more responsibly when the buyer provides the following information.
Product and Process Data
- Coffee type and target market
- Extraction method
- Extract solids or Brix
- Viscosity and prepared batch weight
- Direct-liquid or porous-granule product route
- Nitrogen flow, injection method and target foam density, if used
- Freezing and granulation method
- Particle-size and bulk-density target
- Final moisture and water-activity target
- Dissolution, aroma and appearance requirements
Factory and Production Data
- Target finished kilograms per day
- Operating hours and days per year
- Electricity and voltage
- Food-grade nitrogen supply and ventilation, if used
- Steam pressure and capacity, if available
- Cooling-water temperature and flow
- Workshop area and ceiling height
- Material-flow and cleaning requirements
- Installation country and service expectations
Request a Coffee Freeze-Drying Project Evaluation
Send the extract solids, prepared batch weight, desired product form, daily output and available utilities. The engineering team can estimate water removal, condenser load, usable drying area, process route and a suitable model.
Send These Data
- Extract solids or Brix
- Prepared batch weight
- Target moisture and water activity
- Powder, block or granulated product target
- Particle size and bulk density, when required
- Daily finished-product target
- Electricity, steam, cooling water and nitrogen availability
Receive a Practical Estimate
- Dry solids and water removal
- Condenser-load check
- Usable shelf-area estimate
- Likely cycle and batches per day
- Feed-preparation route recommendation
- Pilot-test recommendation
- Suitable coffee freeze dryer range
Frequently Asked Questions About Coffee Freeze Dryers
Can coffee be freeze-dried?
Yes. Commercial production normally freeze-dries coffee extract after extraction, clarification, route selection, freezing and controlled vacuum drying. Whole roasted beans are not the normal feed material.
Does coffee extract need concentration before freeze drying?
Not always. In the manufacturer’s engineering practice, extract below 18% solids can be frozen directly. Concentration becomes more important when the factory wants higher output, lower condenser load or defined porous granules.
Why is nitrogen injected before freezing?
In the manufacturer’s validated route, food-grade nitrogen creates bubbles in concentrated coffee. Freezing fixes the cavities, which can become water-vapor channels during sublimation. This method still requires pilot validation for each formula.
How long does coffee freeze drying take?
No universal cycle applies. Concentration, particle size, loading depth, product-temperature limit, pressure, condenser performance and final moisture all affect time.
How is coffee freeze dryer capacity calculated?
Calculate dry solids, estimated finished product and water removal first. Then confirm usable area, condenser duty, full cycle time and batches per day.
Can a commercial food freeze dryer process coffee?
Yes, when it has sufficient condenser, vacuum, shelf-heating and control performance. It still needs a coffee-specific feed-preparation method, loading basis and drying recipe. The food freeze dryer selection guide explains the general equipment principles.
Should a producer run pilot tests before buying?
Yes. Pilot tests should define concentration, freezing structure, loading density, drying curve, final moisture, water activity, bulk density, dissolution, yield and utility use.
References
Chinese-language sources retain their original Chinese bibliographic information. English-language sources retain their original English titles.
- 胡荣锁, 段其站, 董文江, 等. 冻干咖啡粉的研制及风味品质特性研究[J]. 热带作物学报, 2019, 40(8): 1618–1625. DOI: 10.3969/j.issn.1000-2561.2019.08.024.
- 李国辉. 冷萃咖啡烘焙萃取及冻干工艺优化与过程成分变化分析[D]. 厦门: 集美大学, 2023.
- 贺萍, 张高鹏, 叶松梅, 等. 咖啡类饮料的加工及其发展趋势[J]. 食品工业科技, 2023, 44(19): 491–498. DOI: 10.13386/j.issn1002-0306.2023010168.
- 符伟扬. 冻干技术在速溶咖啡生产中的应用[J]. 包装与食品机械, 2000, 18(4): 19–21.
- Wang W, Wang S H, Pan Y Q, et al. Porous frozen material approach to freeze-drying of instant coffee[J]. Drying Technology, 2019, 37(16): 2126–2136. DOI: 10.1080/07373937.2018.1564759.
- GEA coffee and tea process overview — extraction, concentration and industrial drying context.
- DEVEX instant coffee processing plants — batch and continuous production context.
- U.S. FDA: Water Activity in Foods — stability and storage considerations.
- U.S. OSHA: Oxygen-Deficient Atmospheres — nitrogen can displace oxygen and create an oxygen-deficient atmosphere.
Research temperatures, pressures, loading depths and moisture values are references, not universal equipment guarantees. Each formula requires product testing, local food-safety review and project-specific engineering.
